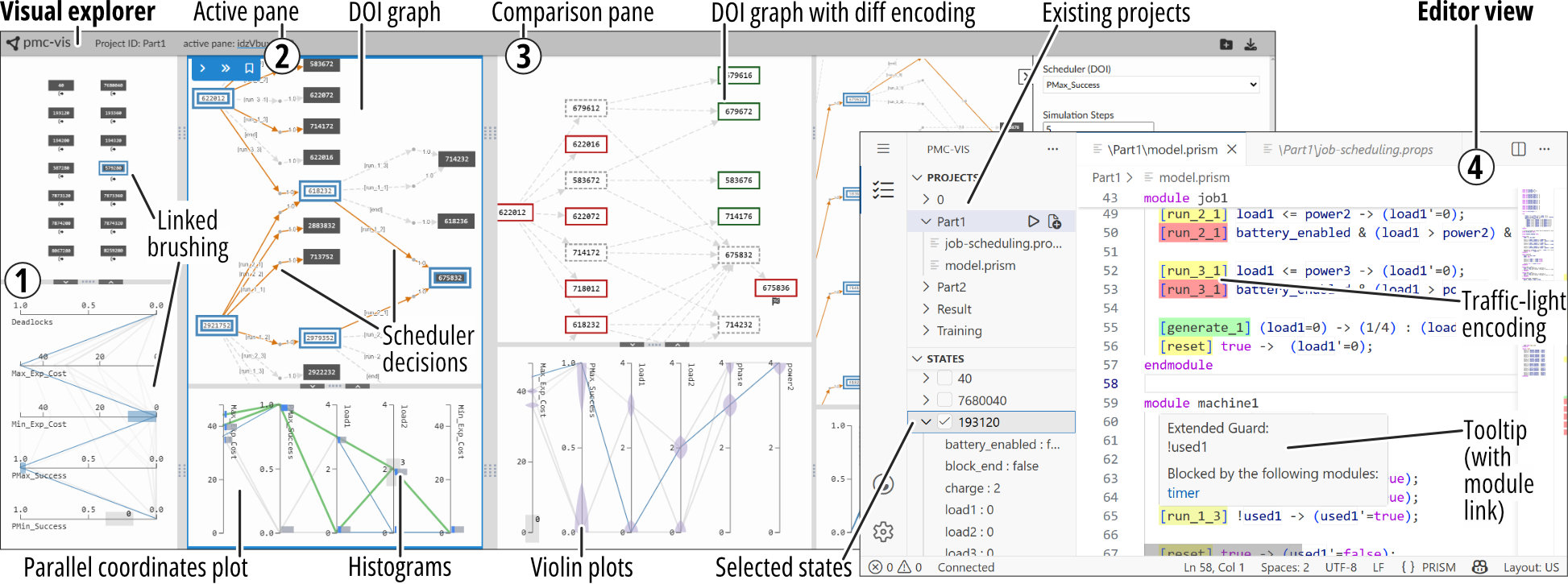

pmc-vis as a visualization tool for probabilistic models and it supports the exploration of large multivariate decision graphs, formal verification, and debugging.
Core Publication
@inproceedings{pmc-vis-2023,
author = {Max Korn and Juli\'{a}n M\'{e}ndez and Sascha Kl\"{u}ppelholz and Ricardo Langner and Christel Baier and Raimund Dachselt},
title = {PMC-VIS: An Interactive Visualization Tool for Probabilistic Model Checking},
booktitle = {Software Engineering and Formal Methods},
series = {Lecture Notes in Computer Science},
volume = {14323},
year = {2023},
month = {11},
location = {Eindhoven, Netherlands},
doi = {10.1007/978-3-031-47115-5_20},
publisher = {Springer}
}Weitere Materialien
Run the Application / Get the Prototype
Our tool pmc-vis is free and open source.
- GitHub repository with source code: https://github.com/imldresden/pmc-vis
- DOI to the reproducibility package in Zenodo: https://doi.org/10.5281/zenodo.8172531 (This package includes the docker images, experiments, source code and instructions on how to replicate our results)
On this page
Tool and Walkthrough Videos

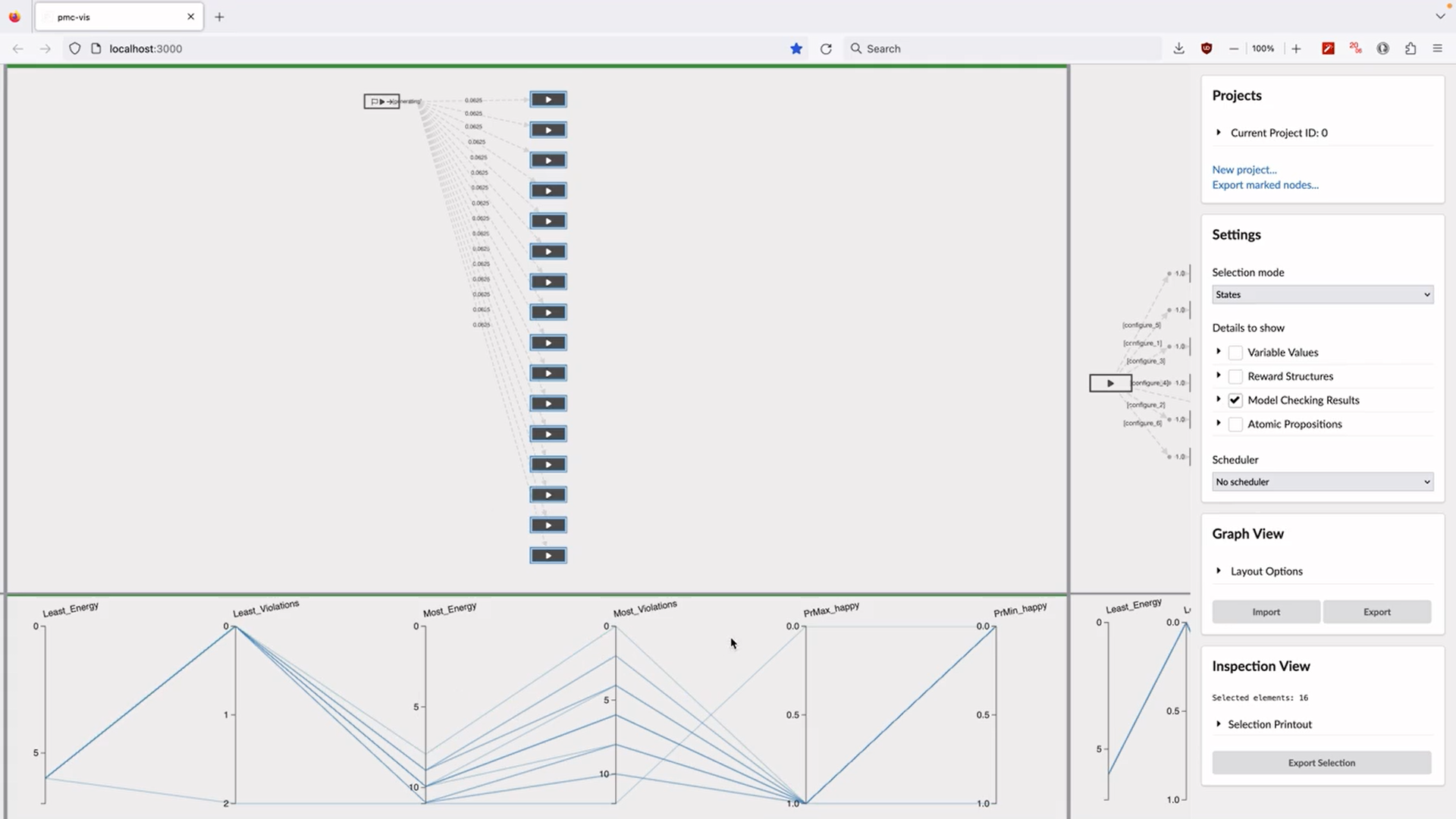

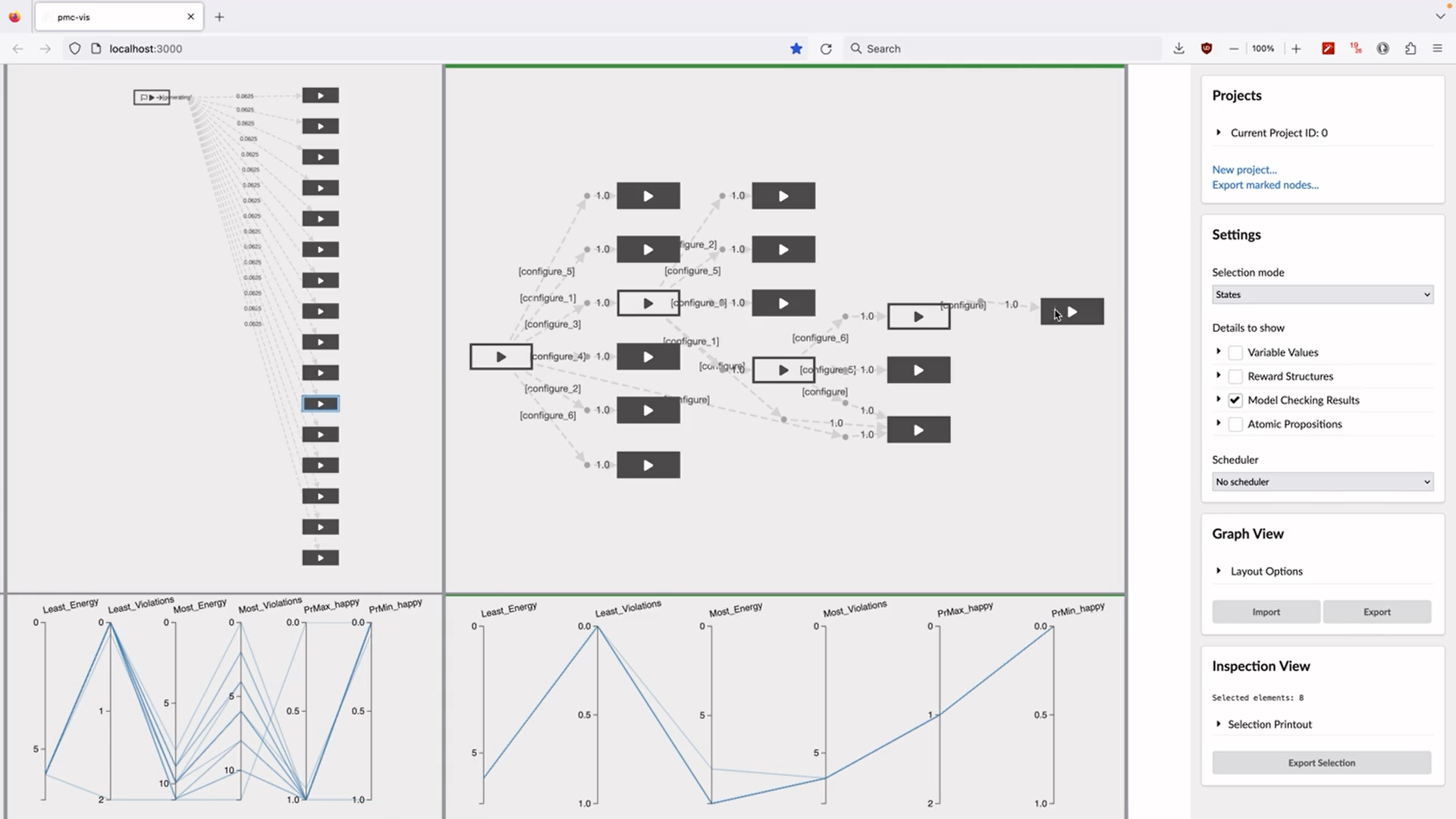

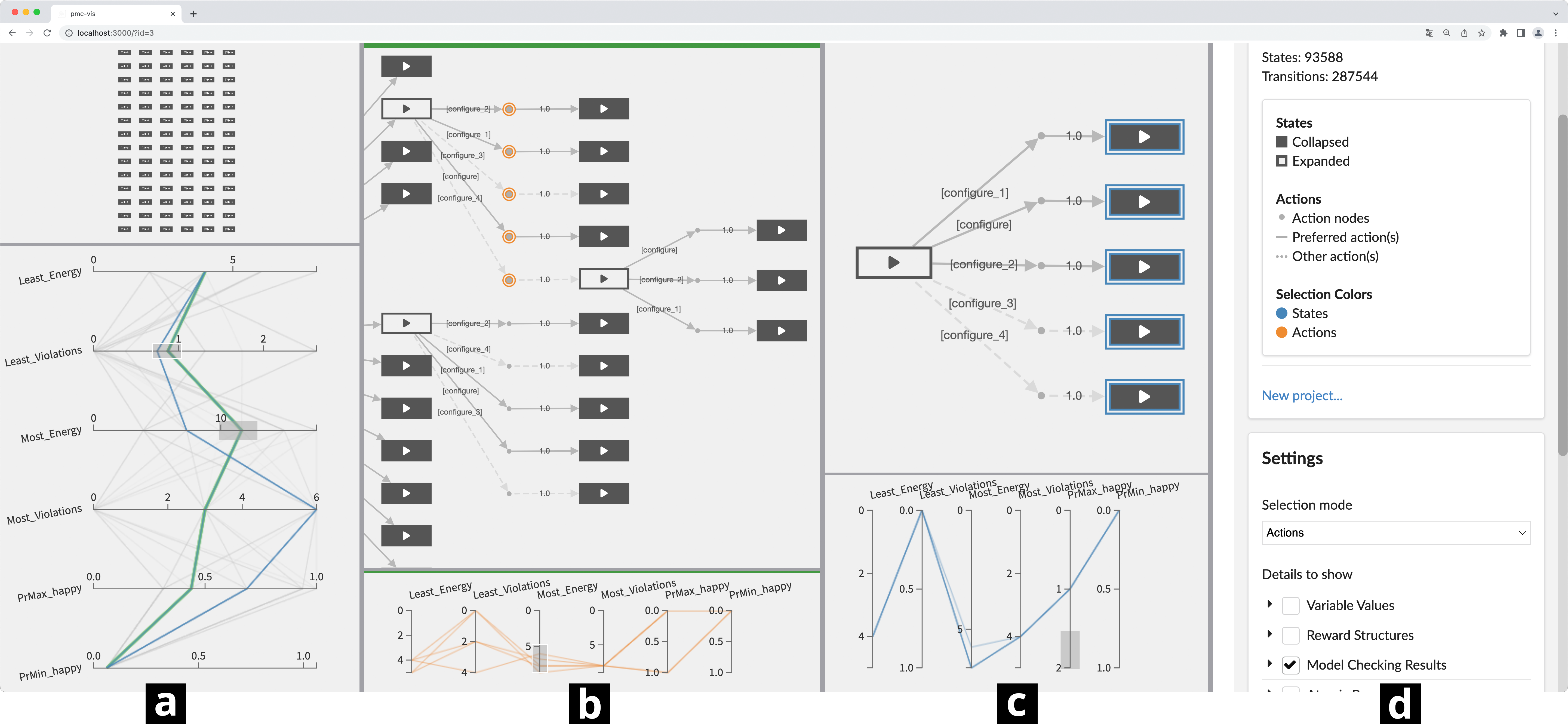

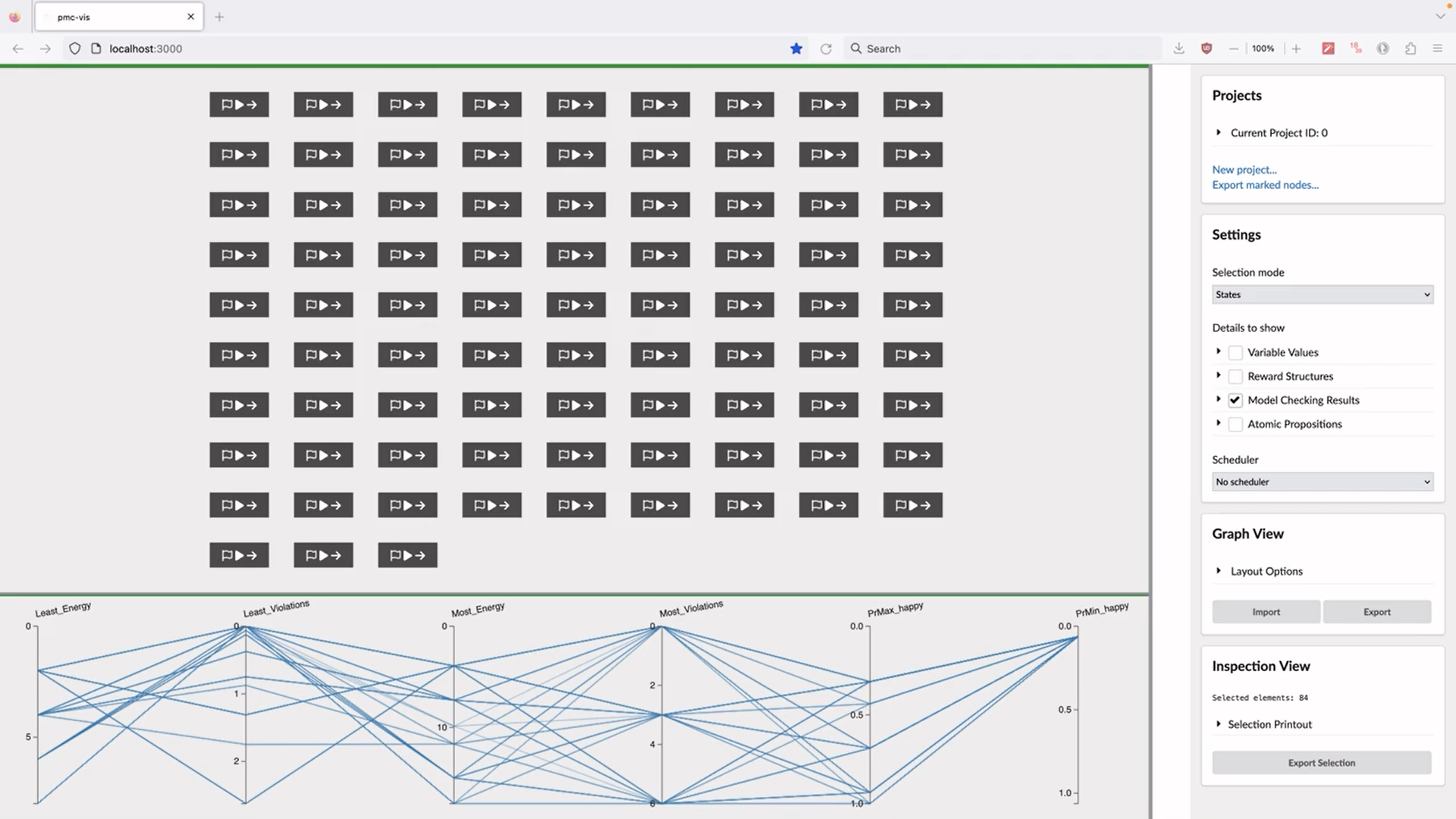

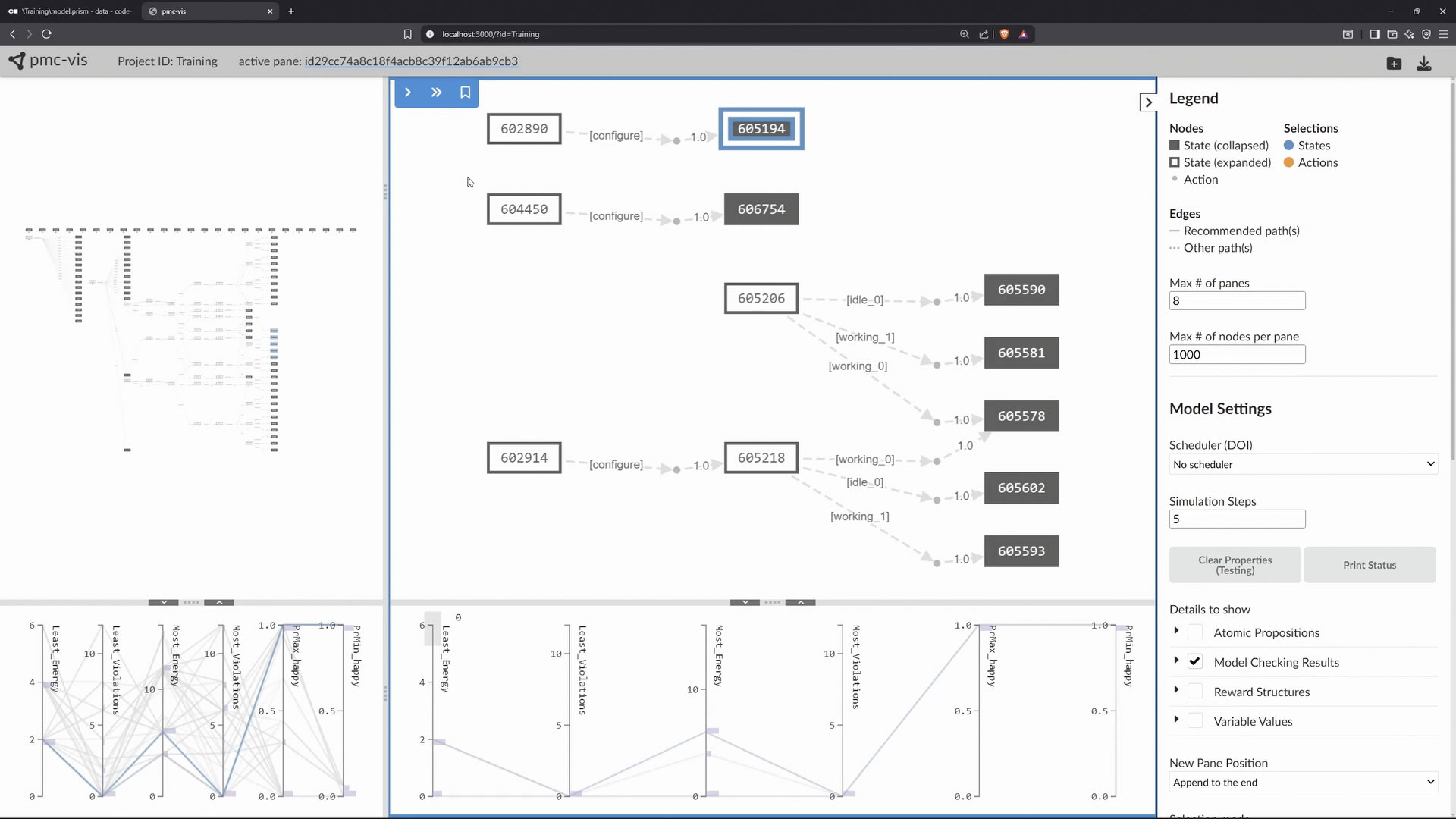

The following video was used for onboarding and training purposes in a qualitative user study on pmc-vis.
…
